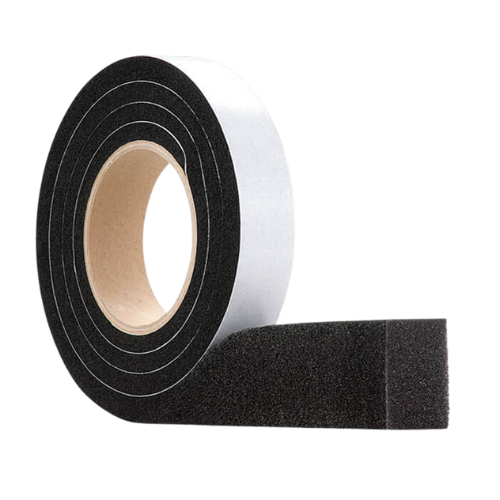

Self Expanding Seal

The Self expanding sealing tape consisting of impregnated foam. It is utilized in the interior and exterior sealing of joints and connections against driving rain tested up to even 300 pa in window construction, as well as the entire sector of building construction.

Description

Due to its special properties, it is particularly useful for the coupling in window frames. The simple installation enables a fast and efficient sealing, even with complicated connections.

Self Expanding Seal

Self Expanding Seal Width (mm) Expansion (mm) Roll (m) Delivery
ECO S01 10/4x20 10 4 - 20 8 in stock
ECO S01 15/4x20 15 4 - 20 8 in stock
ECO S01 20/4x20 20 4 - 20 8 Ask for delivery
ECO S01 20/6x30 20 6 - 30 5.6 Ask for delivery

Product Data Sheet

Property Specification Value
Weight DIN EN ISO 845 55(±6) kg/m³
Compatibility with other materials DIN EN 18542 Fulfilled
Temperature resistance DIN EN 18542 -30 bis +60°C
Burning behaviour DIN 4102 B2 - Classification
Colour   Black
Thickness available   4x20mm, 8x40mm, 10x50mm
Storage   12 months at ≤ 20°C
Working temperature   +5 bis +25°C

Areas of application

  • Window and interior construction
  • Façade engineering, wood and metal construction
  • Concrete and dry-walling
  • Pre-fabricated housing, container and roof construction etc.

Colour / Delivery Form

  • grey, black
  • pre-compressed onto a roll

Characteristics

  • Reaction to fire according to DIN 4102-1 B2, ABP-Nr. P-NDS04-1045
  • open to water vapour diffusion acc. to DIN 18542 BG2
  • driving rain resistent ≥ 300 Pa
  • consistent quality guaranteed through regular third-party- and self-monitoring

Product Advantages

  • seals against driving rain, wind, dust and water spray
  • heat insulating and sound absorbing (59dB)
  • controlled expanding behaviour

Processing

The joint edges need to run parallel. Measure the width of the joints and choose the appropriate tape size in compliance with the joint tolerance determined and any joint movement (if necessary use several tape sizes). As far as the joint depth is concerned, please note that the tape has to be laid inwards by 2 mm from the front edge of the joint for safety reasons.

If installed in joints underlying particularly high strains (parking decks, sewage plants, bridge construction etc).
